Hari ini saya akan membahas tentang Cara mudah setting 2 VLAN + Router

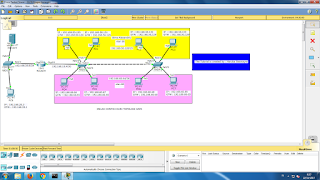

Inilah contoh kerjaan dan topologi saya
Buatlah Topologi jaringannya seperti gambar diatas '-'
Lalu Setting Terlebih dahulu Switchnya (Bebas mau Switch 1 atau 2 dulu) klo saya switch 2 terlebih dahulu
SWITCH 2
Sen 20. Nop 15:02:03 2017 Switch2 Switch>enable
Sen 20. Nop 15:02:05 2017 Switch2 Switch#configure terminal
Sen 20. Nop 15:02:21 2017 Switch2 Switch(config)#vlan 50
Sen 20. Nop 15:02:27 2017 Switch2 Switch(config-vlan)#name bima
Sen 20. Nop 15:02:49 2017 Switch2 Switch(config-vlan)#exit
Sen 20. Nop 15:02:55 2017 Switch2 Switch(config)#vlan 60
Sen 20. Nop 15:03:01 2017 Switch2 Switch(config-vlan)#name alex
Sen 20. Nop 15:03:04 2017 Switch2 Switch(config-vlan)#exit
Sen 20. Nop 15:03:25 2017 Switch2 Switch(config)#int fa0/2
Sen 20. Nop 15:03:30 2017 Switch2 Switch(config-if)#switchport mode access
Sen 20. Nop 15:03:42 2017 Switch2 Switch(config-if)#switchport access vlan 50
Sen 20. Nop 15:03:49 2017 Switch2 Switch(config-if)#exit
Sen 20. Nop 15:03:55 2017 Switch2 Switch(config)#int fa0/3
Sen 20. Nop 15:03:58 2017 Switch2 Switch(config-if)#switchport mode access
Sen 20. Nop 15:04:02 2017 Switch2 Switch(config-if)#switchport access vlan 50
Sen 20. Nop 15:04:04 2017 Switch2 Switch(config-if)#exit
Sen 20. Nop 15:04:12 2017 Switch2 Switch(config)#int fa0/4
Sen 20. Nop 15:04:16 2017 Switch2 Switch(config-if)#switchport mode access
Sen 20. Nop 15:04:20 2017 Switch2 Switch(config-if)#switchport access vlan 60
Sen 20. Nop 15:04:32 2017 Switch2 Switch(config-if)#exit
Sen 20. Nop 15:04:38 2017 Switch2 Switch(config)#int fa0/5
Sen 20. Nop 15:04:41 2017 Switch2 Switch(config-if)#switchport mode access
Sen 20. Nop 15:04:44 2017 Switch2 Switch(config-if)#switchport access vlan 60
Sen 20. Nop 15:04:48 2017 Switch2 Switch(config-if)#exit
Sen 20. Nop 15:05:39 2017 Switch2 Switch(config)#int fa0/1
Sen 20. Nop 15:05:48 2017 Switch2 Switch(config-if)#switchport mode trunk
Setelah itu kita setting SWITCH 1
Sen 20. Nop 15:06:11 2017 Switch1 Switch>enable
Sen 20. Nop 15:06:14 2017 Switch1 Switch#configure terminal
Sen 20. Nop 15:06:53 2017 Switch1 Switch(config)#vlan 50
Sen 20. Nop 15:06:59 2017 Switch1 Switch(config-vlan)#name bima
Sen 20. Nop 15:07:01 2017 Switch1 Switch(config-vlan)#exit
Sen 20. Nop 15:07:08 2017 Switch1 Switch(config)#vlan 60
Sen 20. Nop 15:07:12 2017 Switch1 Switch(config-vlan)#name alex
Sen 20. Nop 15:07:15 2017 Switch1 Switch(config-vlan)#exit
Sen 20. Nop 15:07:26 2017 Switch1 Switch(config)#int fa0/3
Sen 20. Nop 15:07:31 2017 Switch1 Switch(config-if)#switchport mode access
Sen 20. Nop 15:07:39 2017 Switch1 Switch(config-if)#switchport access vlan 50
Sen 20. Nop 15:07:42 2017 Switch1 Switch(config-if)#exit
Sen 20. Nop 15:07:45 2017 Switch1 Switch(config)#int fa0/4
Sen 20. Nop 15:07:50 2017 Switch1 Switch(config-if)#switchport mode access
Sen 20. Nop 15:07:52 2017 Switch1 Switch(config-if)#switchport access vlan 50
Sen 20. Nop 15:07:54 2017 Switch1 Switch(config-if)#exit
Sen 20. Nop 15:08:06 2017 Switch1 Switch(config)#int fa0/5
Sen 20. Nop 15:08:10 2017 Switch1 Switch(config-if)#switchport mode access
Sen 20. Nop 15:08:14 2017 Switch1 Switch(config-if)#switchport access vlan 60
Sen 20. Nop 15:08:16 2017 Switch1 Switch(config-if)#exit
Sen 20. Nop 15:08:21 2017 Switch1 Switch(config)#int fa0/6
Sen 20. Nop 15:08:22 2017 Switch1 Switch(config-if)#switchport mode access
Sen 20. Nop 15:08:24 2017 Switch1 Switch(config-if)#switchport access vlan 60
Sen 20. Nop 15:08:29 2017 Switch1 Switch(config-if)#exit
Sen 20. Nop 15:08:40 2017 Switch1 Switch(config)#int fa0/1
Sen 20. Nop 15:08:54 2017 Switch1 Switch(config-if)#switchport mode trunk
Sen 20. Nop 15:08:56 2017 Switch1 Switch(config-if)#exit
Sen 20. Nop 15:09:02 2017 Switch1 Switch(config)#int fa0/2
Sen 20. Nop 15:09:04 2017 Switch1 Switch(config-if)#switchport mode trunk
Sen 20. Nop 15:09:07 2017 Switch1 Switch(config-if)#exit
Lalu kita setting Router 2 nya
Sen 20. Nop 15:09:21 2017 Router2 Router>enable
Sen 20. Nop 15:09:28 2017 Router2 Router#configure terminal
Sen 20. Nop 15:09:57 2017 Router2 Router(config)#int fa0/1
Sen 20. Nop 15:10:25 2017 Router2 Router(config-if)#ip address 192.168.10.5 255.255.255.252
Sen 20. Nop 15:10:31 2017 Router2 Router(config-if)#no shutdown
Sen 20. Nop 15:10:40 2017 Router2 Router(config-if)#exit
Sen 20. Nop 15:10:46 2017 Router2 Router(config)#int fa0/0
Sen 20. Nop 15:11:01 2017 Router2 Router(config-if)#ip address 192.168.20.1 255.255.255.0
Sen 20. Nop 15:11:03 2017 Router2 Router(config-if)#no shutdown
Sen 20. Nop 15:11:44 2017 Router2 Router(config-if)#exit
Kemudian kita buka jalur dari Router ke Vlan
Sen 20. Nop 15:14:46 2017 Router2 Router(config)#int fa0/1.50
Sen 20. Nop 15:14:55 2017 Router2 Router(config-subif)#encapsulation dot1Q 50
Sen 20. Nop 15:15:54 2017 Router2 Router(config-subif)#ip add 192.168.50.129 255.255.255.128
Sen 20. Nop 15:15:59 2017 Router2 Router(config-subif)#exit
Sen 20. Nop 15:16:06 2017 Router2 Router(config)#int fa0/1.60
Sen 20. Nop 15:16:55 2017 Router2 Router(config-subif)#encapsulation dot1Q 50
Sen 20. Nop 15:17:29 2017 Router2 Router(config-subif)#ip add 192.168.60.65 255.255.255.192
Sen 20. Nop 15:17:33 2017 Router2 Router(config-subif)#exit
Dijamin Work kok 100% '-' gk bisa coba trus ya jangan putus asa mungkin ada skrip yg terlewat '-'
Kalo skrip punya saya juga ada kekurangan harap dimaklumi yak '-'
saya juga ini tugas dikejar Deadline :v
Terima kasih telah membaca artikel ini dan juga telah mengunjungi blog ini
Sampai jumpa dan jangan lupa kunjungi lagi ya!!!
